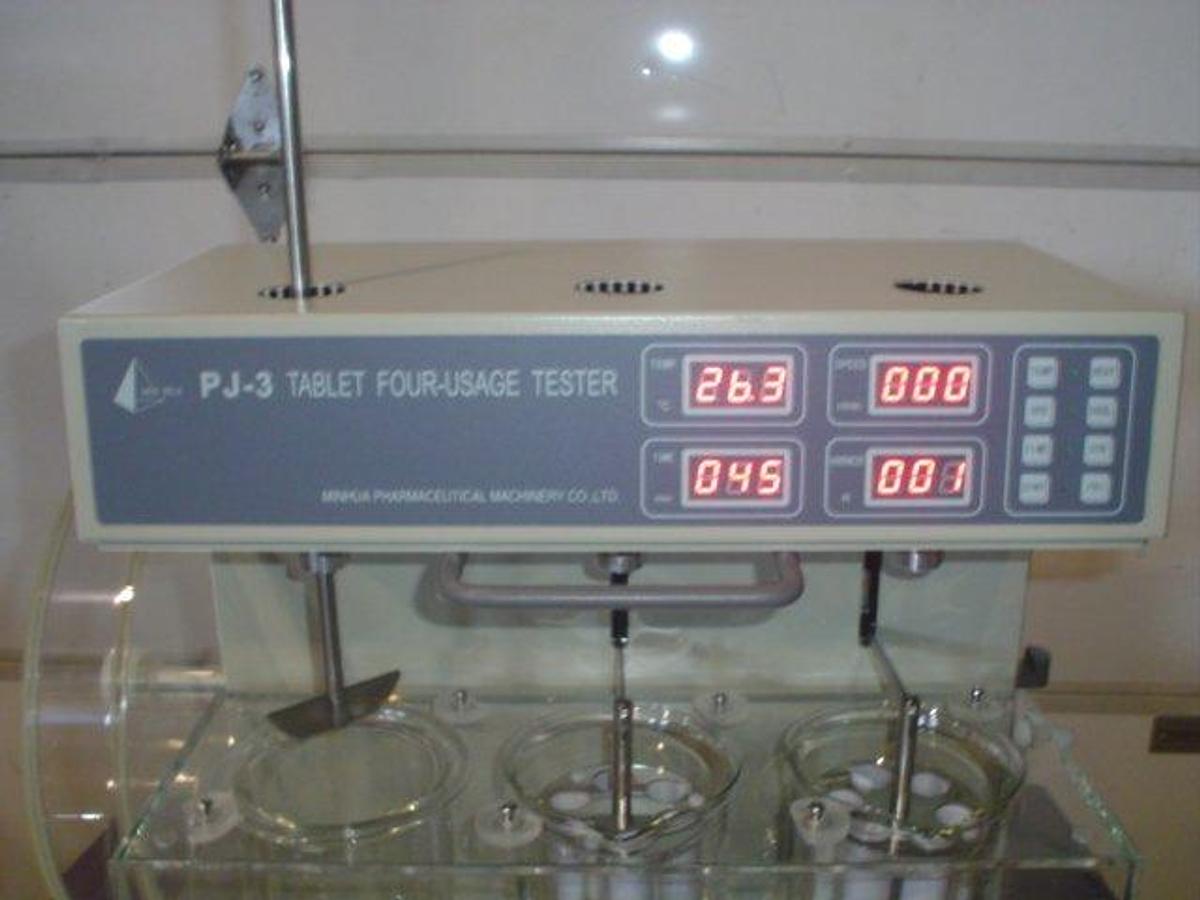

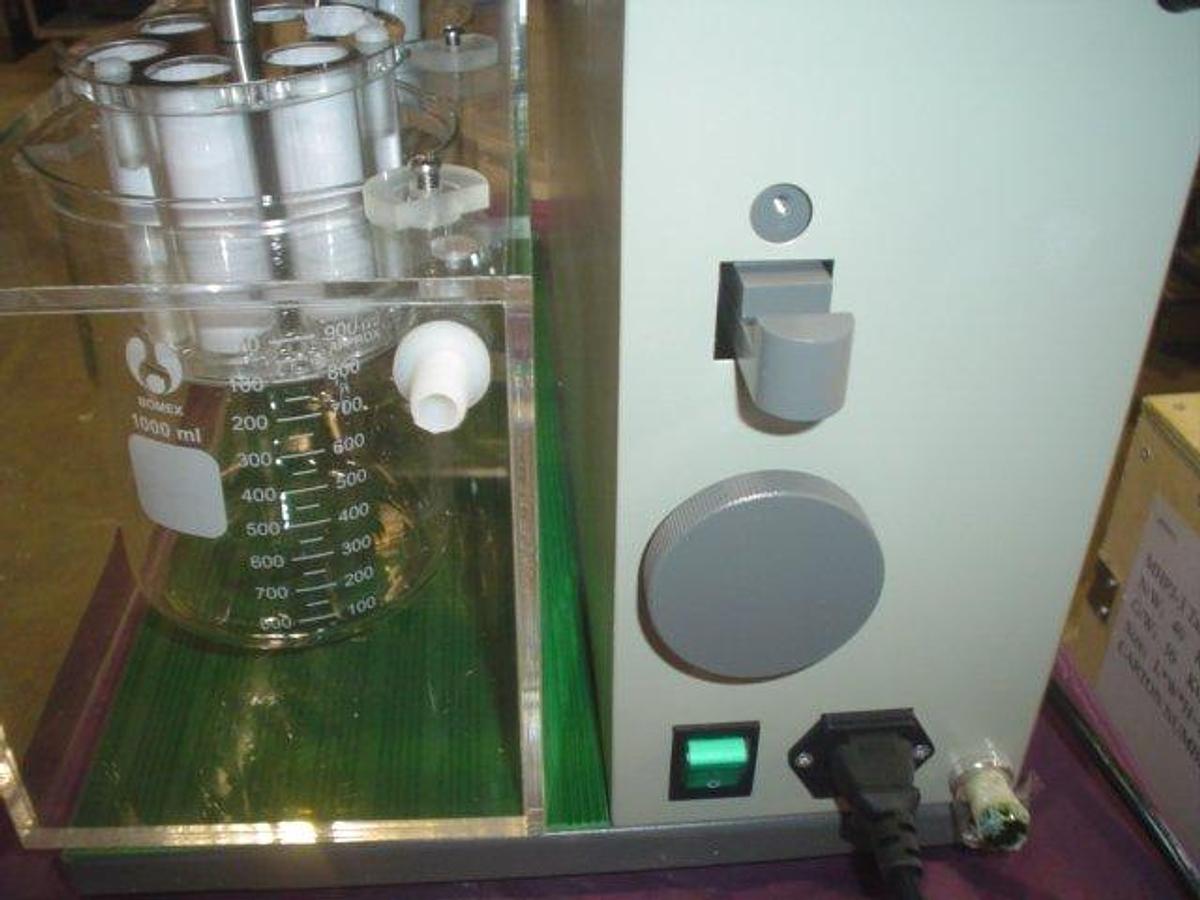

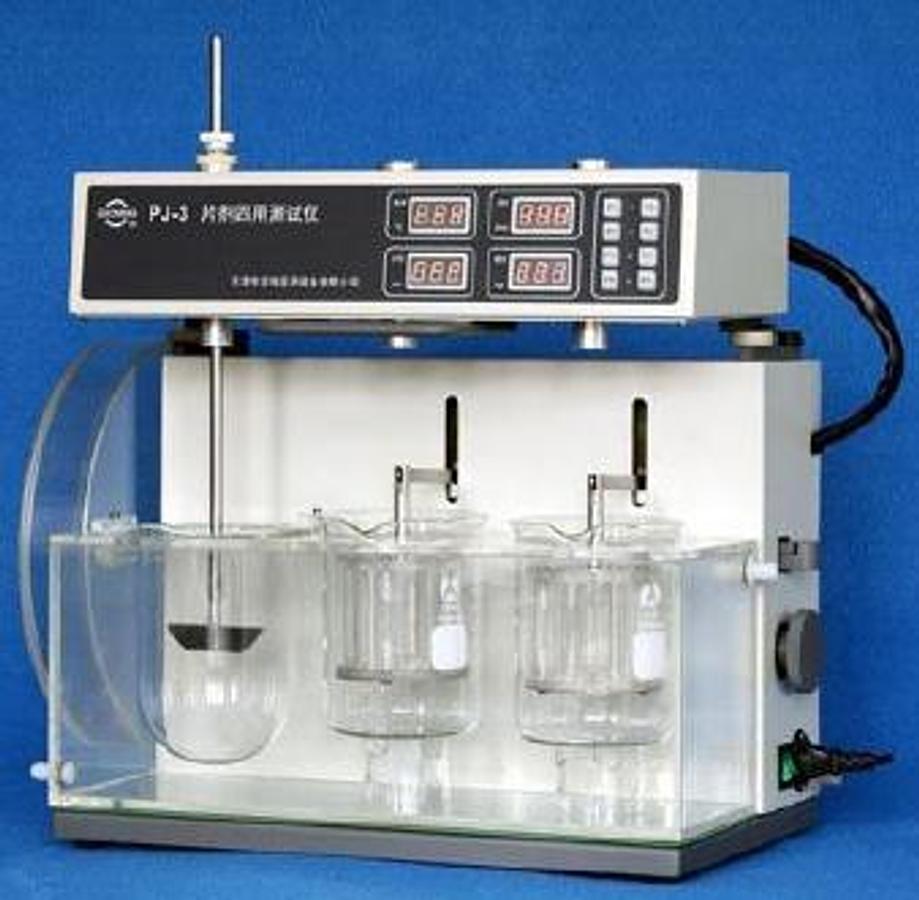

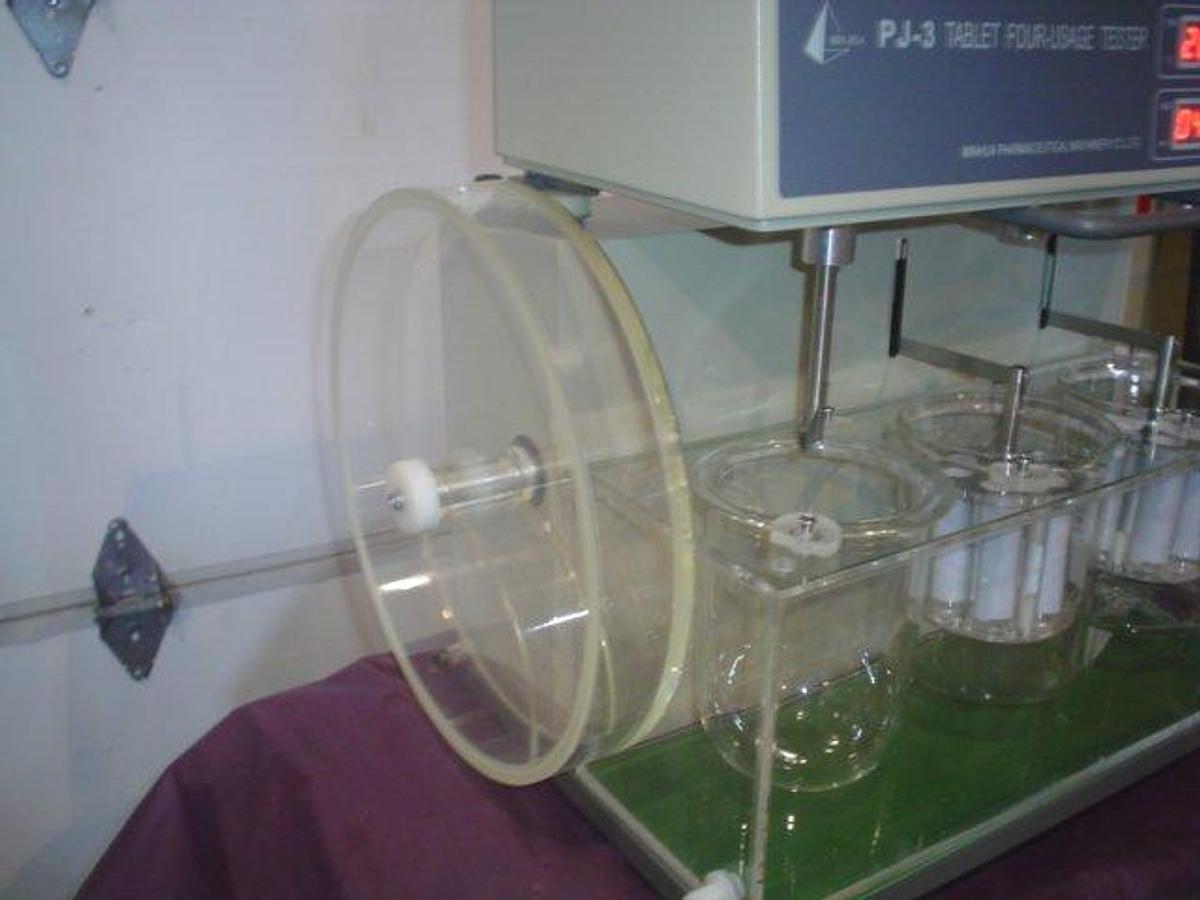

New PJ-3 Tablet Four-Usage Tester

New PJ-3 Tablet Four-Usage Tester. It has four functions: detecting pharmaceutical dissolution, disintegration.

Friability/abrasion and hardness of tablet. Applicable standard: National standards and Corporate standards.

Features:

1. Comes with auto-control, auto-test, auto-diagnose, and auto-alarm.

2. The circular water current pumped by magnetism pump can heat the system

equally, and the bath liquid can achieve an even temperature.

3. Temperature is auto-controlled.

4. Auto stop at timing point.

5. Parameters can be preset at any time, the preset and real data are displayed

alternately in time.

6. Has three vessels and three poles arranged on one line.

The head part of the instrument can be artificially turned over smoothly and flexibly.

7. Two disintegrations run synchronously, auto stop at timing point.

The basket units and paddle units are made of imported stainless steel (SUS316L)

8. Accuracy is achieved in testing rotary speed and counting friability.

9. The hardness tester has high accuracy press sensors and hardness data is

displayed in Newton.

10. It tests tablet hardness continuously, the tablet is loaded and pressed.

11. Auto-display, auto-memorize, auto-rest, auto-reset.

Specifications:

1. Temperature range: (ambient to +39.9) ±0.3

2. Speed range: (20-200) rpm ± 2rpm

3. Automatic time range: (1-900) min ± 0.5min

4. Stations of dissolution: 3

5. Paddle radial run-out: ± 0.5mm

6. Basket radial run-out: ± 1.0mm

7. Basket assemblies: 2

8. Nacelle back and forth frequency: (30—32)/min

9. Nacelle back and forth range: (55 ± 2)/mm

10. Drum 1

11. Drums size radius: 286 mm depth: 39mm

12. Hardness range: (2-200) N

13. Probe procession range: (3-20) mm

14. Power 220 Volts or 110 Volts, 600 Watts, CE. (customer to specify)

15. Dimensions: (520 x 380 x 470) mm3

16. Weight: 32KG

Delivery Time: approx 3-4 weeks from receipt of payment.
